From complex industrial structures to miscellaneous plate fabrications, we deliver clear drawings that streamline fabrication and ensure perfect field fit-up.
High-precision 3D modeling and detailing of beams, columns, trusses, and structural frames.
We translate structural engineering drawings into clear, fabrication-ready models. Our services include column detailing, beam layouts, trusses, bracing systems, and complex architectural steel assemblies.
Detailed modeling of stairs, handrails, ladders, platforms, and safety guards.
Miscellaneous steel detailing requires an eye for architectural integration and safety compliance. We deliver precise models and shop drawings for stairs, ladders, safety cages, handrails, and maintenance platforms.
Complex industrial sheet metal and heavy plate fabrications including chutes, silos, and hoppers.
Detailing heavy plate works involves complex geometry mapping and unwrapped template development. We specialize in silos, hoppers, bins, dust collectors, and heavy industrial ducting.

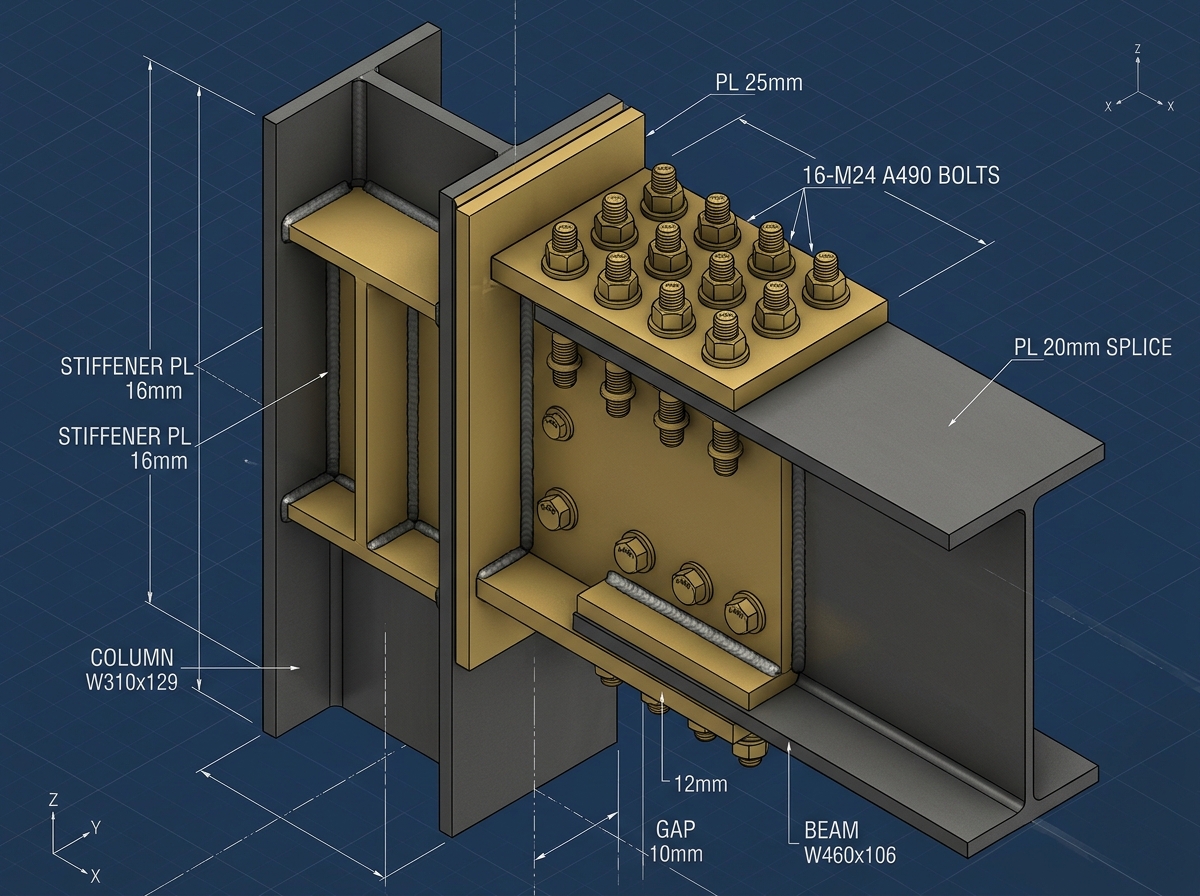

Engineering of bolted and welded connections, gusset designs, and splice checks.
We detail connection configurations based on load sheets and design schedules. Our team designs gusset plates, splice connections, shear plates, and moment connections.
Comprehensive Bills of Materials, shipping lists, bolt lists, and CNC files.
Clear and accurate material documentation is critical for procurement and project tracking. We generate comprehensive material lists directly from the 3D model, ensuring complete consistency.

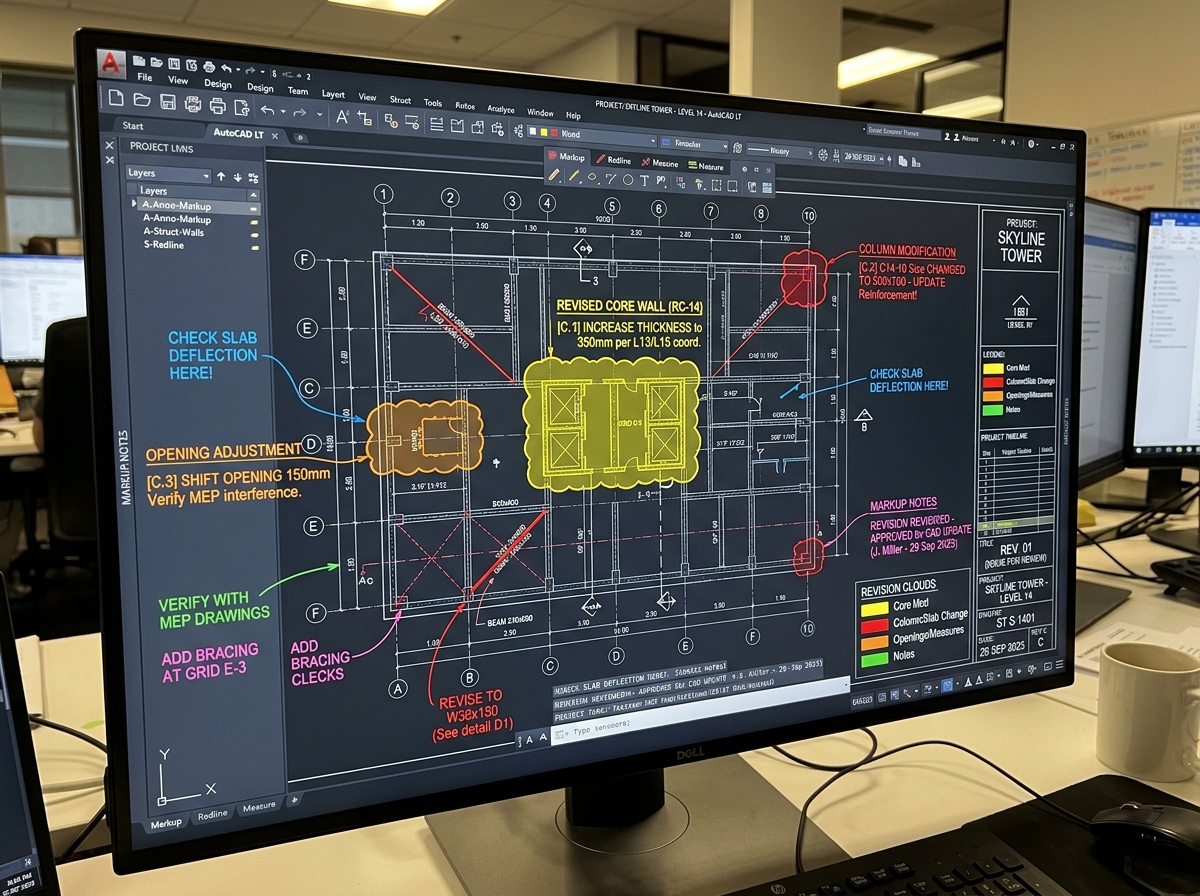

Disciplined tracking and updates of design changes to prevent fabrication delays.
Engineering changes are inevitable. We handle design revisions with disciplined coordination, tracking modifications in the model and color-coding changes in updated drawing releases.
In modern fabrication yards, drawings are only half of the requirement. Fabricators require direct digital inputs to run automated CNC cutting, drilling, and coping lines. We extract all necessary production data directly from our 3D models.
Standard files for beam drill lines, coping units, and plate processors.
Flat vector profiles for plate nesting, plasma, laser, and waterjet cutting.
Organized material lists and shipping bills of materials sorted by sequence.
IFC models for contractor coordination, cladding details, and erection checks.
We utilize advanced building information modeling and detailing technologies to generate complete 3D steel detailing structures.
Our detailing engineering capability delivers precision solutions across diverse sectors, complying with all safety, loading, and structural codes.
Office towers, complex shopping centers, retail complexes, and mixed-use structures.
Refineries, chemical processing structures, heavy pipe racks, and equipment support steel.
Assembly yards, automotive plants, factories, and overhead crane runway steelwork.
High-clearance logistic centers, large-span portal frames, storage yards, and mezzanines.
School buildings, high-concept university wings, indoor gyms, and sports structures.
Hospitals, medical labs, and clinics requiring specialized MEP openings and support frames.
Pedestrian link bridges, utility portals, gantries, pipe bridges, and modular layouts.
Airport hangers, terminal roofing systems, railway depots, and transfer towers.
Unfolded templates, hoppers, bins, storage silos, boiler casings, and heavy flue ducts.
